Aluminium Strip Ceiling (Type A & F)

Description

Metal Products Company offers aluminium pre painted strip ceilings in different colors and widths.

We manufacture these ceiling as per required length. This feature makes it ideal solution in many applications and designs.

Strip ceiling easily adapt to light fixtures, air conditioning vents and ventilation. These ceilings are durable for moisture resistant areas.

Installation Guide

  • Aluminium angle (edge trim) are first fixed to the required ceiling level
  • The hangers (seam) are then fixed to the ceiling slabs at 1200mm c.c
  • Omega / carrier are then attached to the hangers and aligned to the required ceiling level at 1200mm c.c
  • The aluminium strip panels are then clipped to the omega.
  • Ceiling is finished smooth ready.
1. Alu Angle / Edge Trim
2. A84 Panel
3. Filler
4. Omega / Carrier
5. Ceiling Nail Seam System
6. Seam
7. Double Spring Clips
8. A84 Perforated Panel

Aluminium Strip Ceiling A84

Item No. Profile Detail

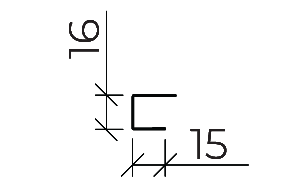

1. Alu. Angle (Edge Trim)

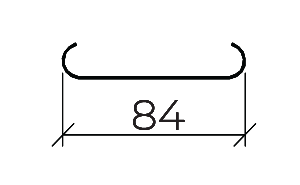

2. A84

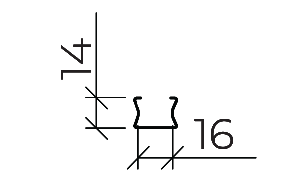

3. Filler

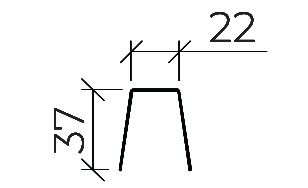

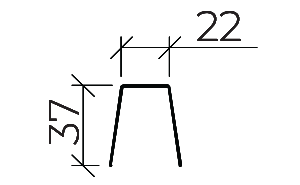

4. Omega (Carrier)

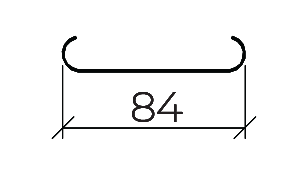

8. A84
Perforated
1. Alu Angle / Edge Trim
2. A84 Panel
3. Filler
4. Omega / Carrier
5. Ceiling Nail Seam System
6. Seam
7. Double Spring Clips
8. A84 Access Panel
9. Alu Angle / Edge Trim

Aluminium Strip Ceiling A84 With Access Panel

1. Alu. Angle / Edge Trim
2. F84 Panel
3. F134 Panel
4. F184 Panel
5. Omega / Carrier
6. Ceiling Nail Seam System
7. Seam
8. Double Spring Clips
9. F Panel Perforated

Aluminium Strip Ceiling F

Item No. Profile Detail

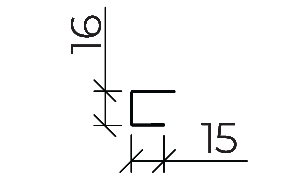

1. Alu. Angle (Edge Trim)
2. F84 Panel
3. F134 Panel
4. F184 Panel
5. Omega (Carrier)
9. F84 / 134 / 184 Perforated Panel
1. Alu. Angle / Edge Trim
2. F Pane
3. Omega / Carrier
4. Ceiling Nail Seam System
5. Seam
6. Double Spring Clips
7. F Access Pane
8. Alu. Angle / Edge Trim

Aluminium Strip Ceiling F With Access Panel

Characteristics

Card image cap
Thermal & Acoustic Insulation
  • The needs of thermal can be achieved with the application of insulating materials.
  • Perforated panels with sound absorbent felt can be used where acoustics properties are required.
Card image cap
Services Integration

The System easily accommodates essential facilities such as:

  • The modular light fittings and spotlights,
  • Air diffusers of different shapes (linear, square or round),
  • Security devices, water sprinkles and smoke detectors.
Card image cap
Advantages
  • Easy to install.
  • Durability, these strips are provided with high quality paint finish.
  • Flexible design options: MPC strips suitable for a great number of applications such as in hospitals, offices, shops,exhibition centers, airports, wet areas, etc. The strips provide an easy access at any point for instant maintenance of services installed above ceiling.
Card image cap
Storage And Handling
  • Ceiling components must be stored in a dry clean location.
  • Special care must be taken during handling to avoid damages.
Card image cap
Fire Classifications

The products are fire resistant and comply with the BS standard 476 part 7

Card image cap
Colour

A wide range of colors of pre painted aluminum are available.
