Furring Ceiling System

Description

Furring ceiling systems profiles are manufactured from roll formed hot dipped galvanized steel coils and are available in different sizes and thickness. Our profiles can be assembled on all types of gypsum boards, cement boards & acoustical boards.

The profiles are manufactured from materials that comply with ASTM C 653M. Our finished profiles comply with ASTM C 645.

Galvanization coating (standard G40 (Z120) as per ASTM C 645). Standard profiles are produced in 3 meter length. Other galvanization coating requirements or lengths can be supplied upon request on minimum ordering quantity.

The system includes furring channel, c channel, w angle / galvanized angle, gypsum boards / cement board / acoustic gypsum boards etc apart from the normal accessories like joint compound fillers, screws, nails etc.

Installation Guide

  • W angle perforated / galvanized angle are first fixed to the required ceiling levels.
  • The hangers (seam / rod) are then fixed to the ceiling slabs at 1200mm c.c.
  • C channels are then attached to the hangers and aligned to the required ceiling level at 1200mm c.c.
  • The furring channels are then clipped to the c channels at 400 / 600mm c.c using furring clips.
  • The gypsum boards, cement boards or acoustic gypsum boards are longitudinally fixed with suitable fasteners to the furring channel at a distance of 250 mm c.c.
  • All joints are taped, and jointing compound is applied. Ceiling is finished smooth ready for painting.

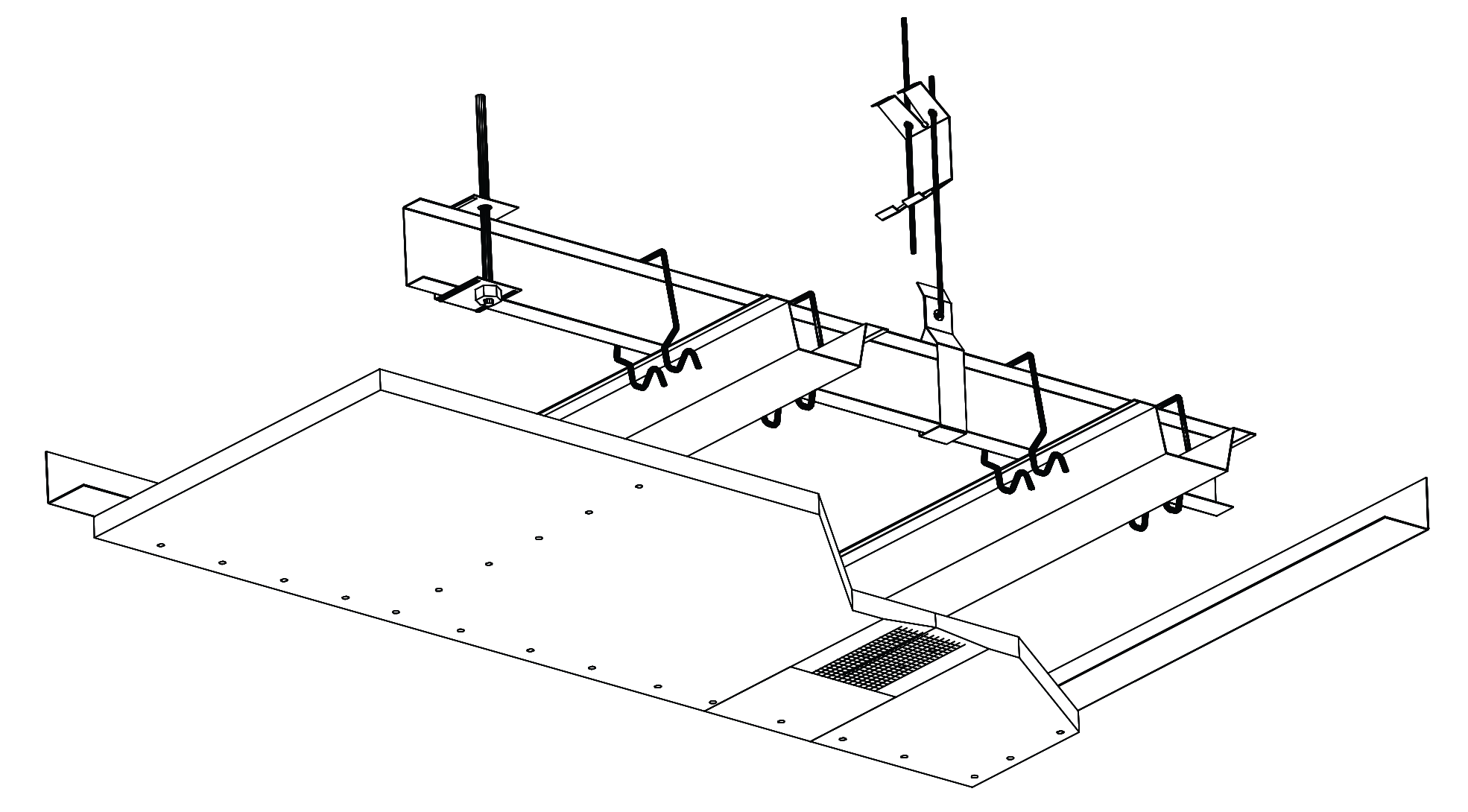

1. W Angle 20 X 20 x 20 x 20 Perforated
1A. Galvanized Angle (LT 25 / LT 30)
2. C Channel (Main Channel MC 38 / MC 45)
3. Furring Channel (FC 35 / FC 50)
4. Furring Clip
5. Ceiling Nail Seam System
5A. Seam
5B. Double Spring Clip
5C. C Channel Seam Bracket
6. Fisher Steel 6MM Rod >System
6A. Threaded Rod 6MM
6B. Nut 6MM
6C. C Channel Rod Bracket
7. Gypsum / Cement Board / Gypboard Acoustic
8. Dry Wall Screws

Furring Ceiling System

Furring Ceiling Parts & Dimensions

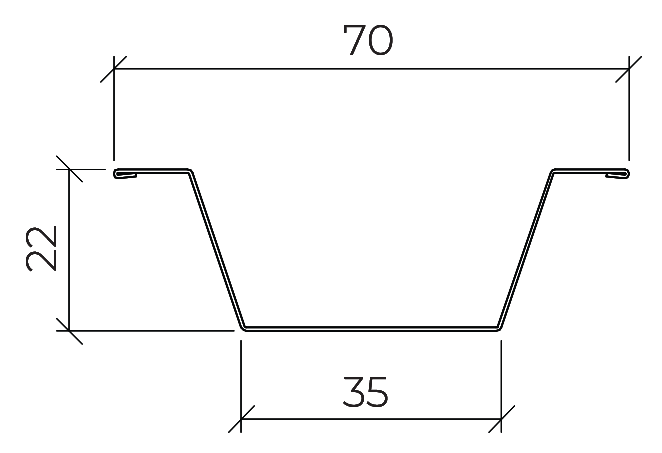

Furring Channel (FC 35)

C Channel
(Main Channel MC 38)

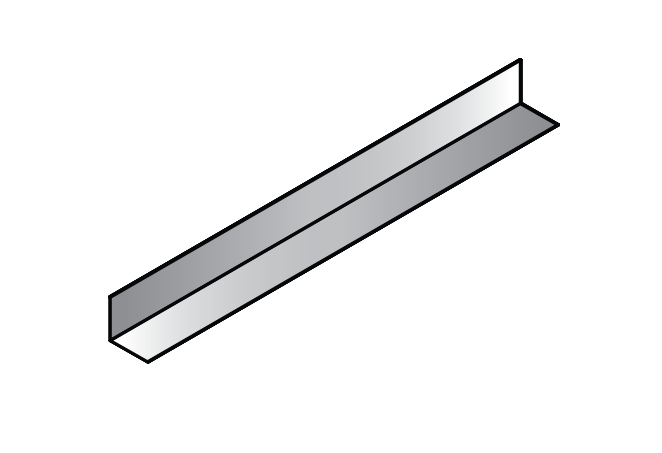

Gavanized Angle (LT 25)

Furring Channel (FC 50)

C Channel

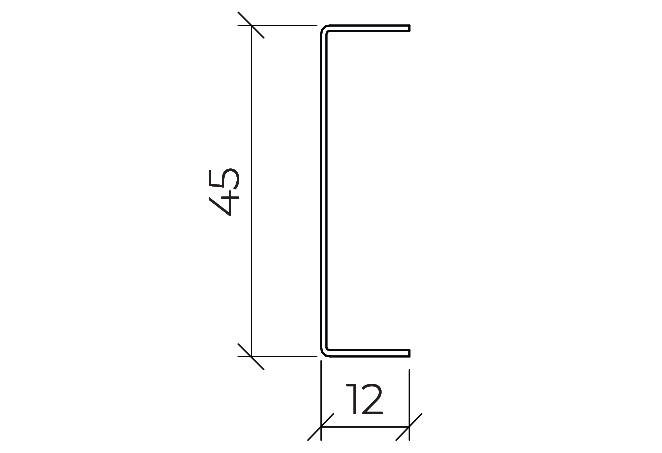

(Main Channel MC 45)

Gavanized Angle (LT 30)

FC 35 / FC 50

MC 38 / MC 45

LT 25 / LT 30

Profiles Length (MM) Reference Dimension (MM) Thickness (MM)
Standard Special Order

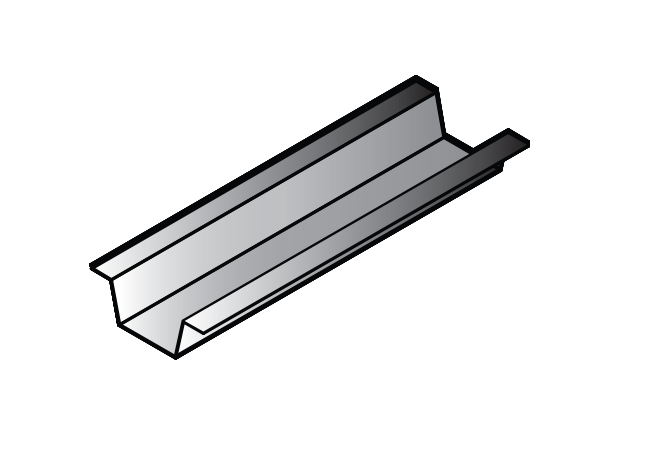

Furring Channel 3000 FC 35 70 X 22 0.45 0.50-0.90

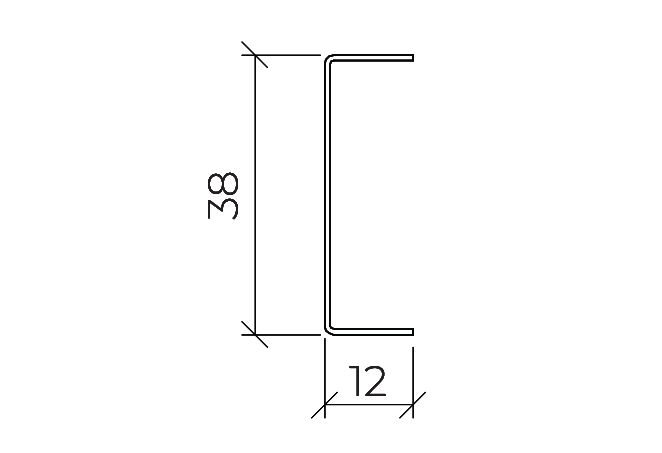

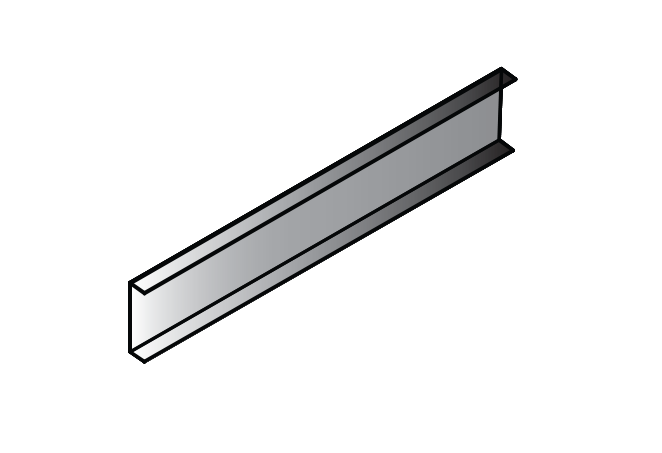

C Channel MC 38 38 X 12 0.70 0.80 - 0.90

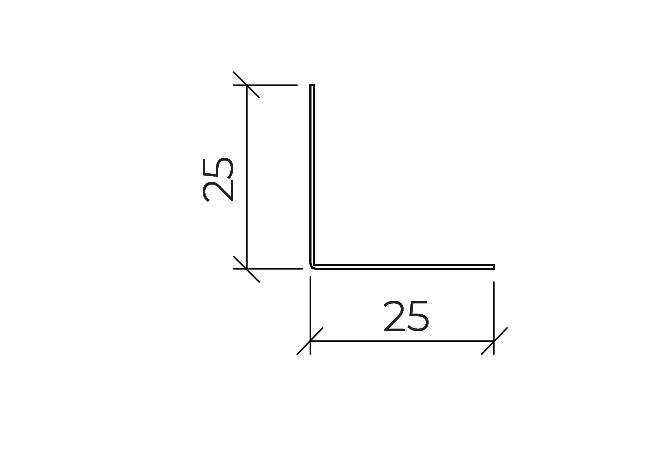

Galvanized Angle LT 25 25 X 25 0.45 0.50 - 0.90
Profiles Length (MM) Reference Dimension (MM) Thickness (MM)
Special Order

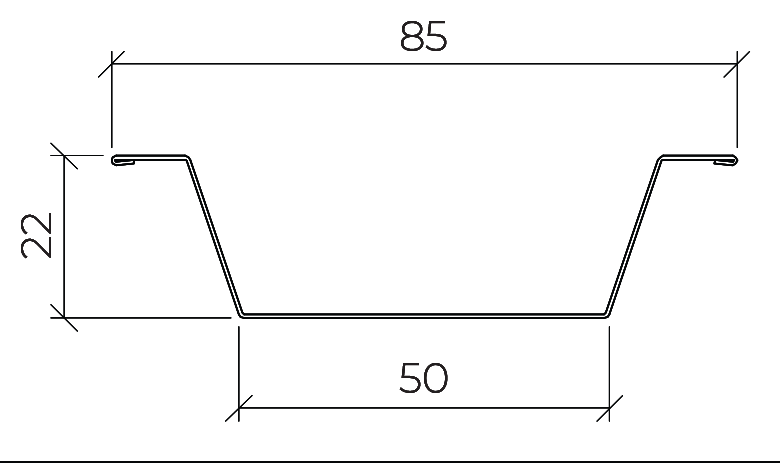

Furring Channel 3000 FC 50 85 X 22 0.45 - 0.90
C Channel MC 45 45 X 12 0.70 - 0.90

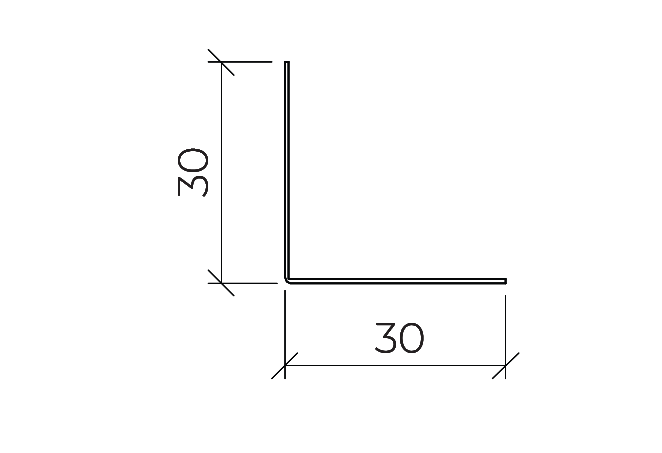

Galvanized Angle LT 30 30 X 30 0.45 - 0.90
