GYPTILE

Description

Metal Products Company’s GYPTILE ceiling has a wide range of different patterns and thickness to satisfy all our client’s needs. These tiles are manufactured from gypsum boards with high purity natural gypsum core which are produced in accordance to EN 520 and ASTM C 1396 Standards. Our GYPTILE’s are tested and approved as per ASTM E84 and are classified under class A.

Types:

  • Plain
  • Vinyl

System

  • Lay In Exposed.

Available Sizes:

  • 600 X 600mm
    :
    For Imperial System
  • 600 X 1210mm
    :
    For Imperial System
  • 595 X 595mm
    :
    For Metric System
  • 595 X 1195mm
    :
    For Metric System
  • Note
    :
    Other Sizes on request
  • Thickness
    :
    9.0 / 9.50mm,12.0 / 12.50mm

Areas of Application:

  • Housing & Commercial Buildings
  • Office & Administrative Buildings
  • Schools
  • Hospitals
  • Prefabricated Buildings etc

Installation Guide

  • The wall angles or w angles are first fixed to the required ceiling levels.
  • The hangers (seam / rod) are then fixed to the ceiling slabs at 1200 / 1220 mm c.c.
  • The main runner (12ft) are then attached to the hanger and aligned to the ceiling level required at distances of 1200 / 1220 mm c.c.
  • The cross tee (4ft) are then attached to the main runner (12ft).
  • The cross tee (2ft) are attached to the cross tee (4ft).
  • The Lay In tiles are then fixed.
1. Wall Angle
1A. W Angle
2. Main Runner (12 ft)
3. Cross Tee (4 ft)
4. Cross Tee (2 ft)
5. Fisher Steel 6MM Rod System
5A. Threaded Rod 6MM
5B. Tee Rod Hanger
5C. Nut 6MM
6. Ceiling Nail Seam System
6A. Seam
6B. Double Spring Clips

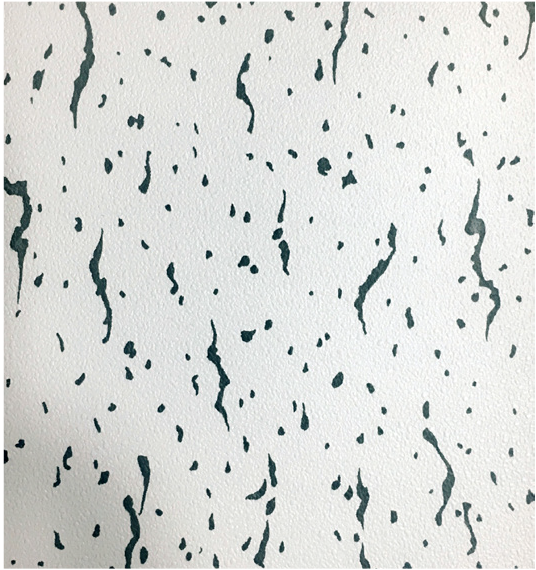

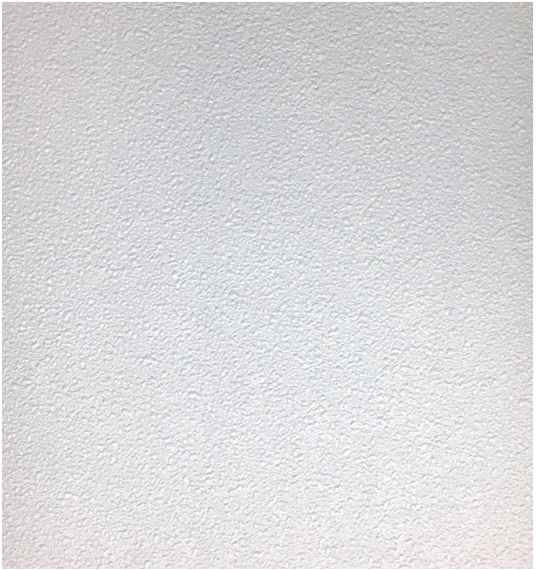

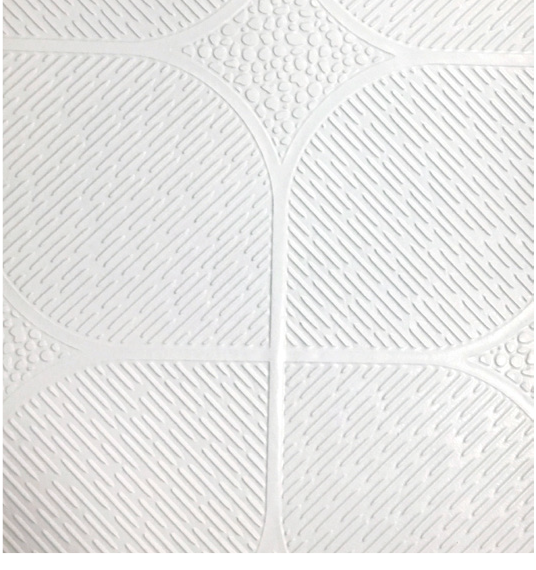

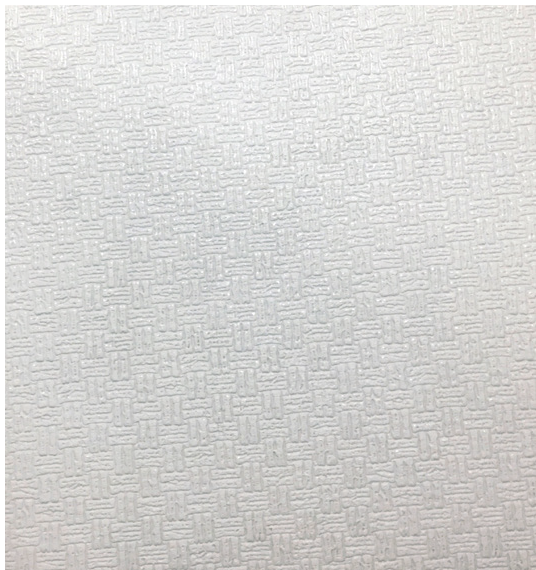

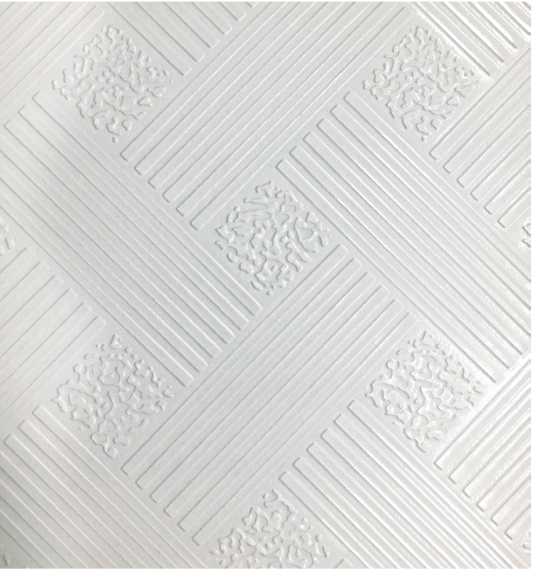

7. Gyptile

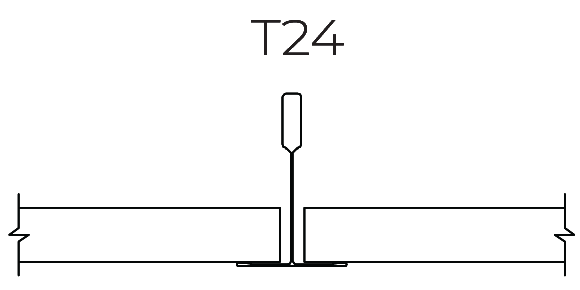

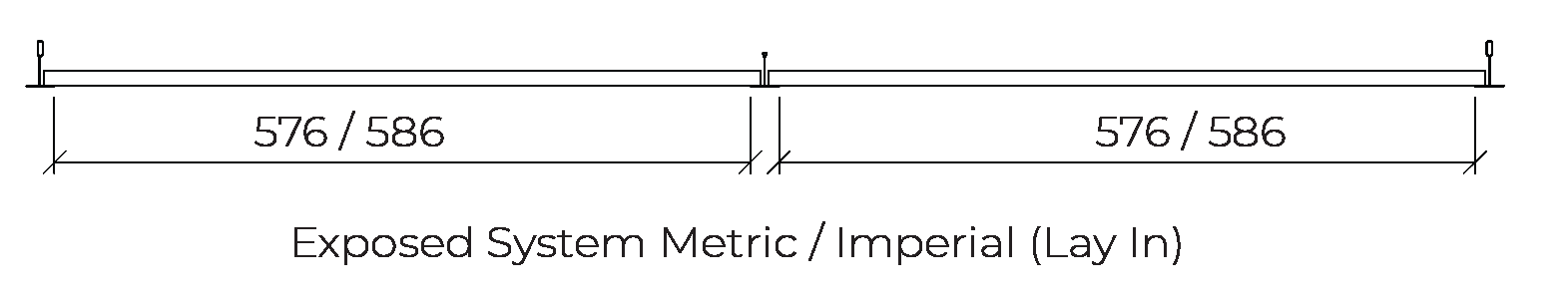

Gyptile With Grid System

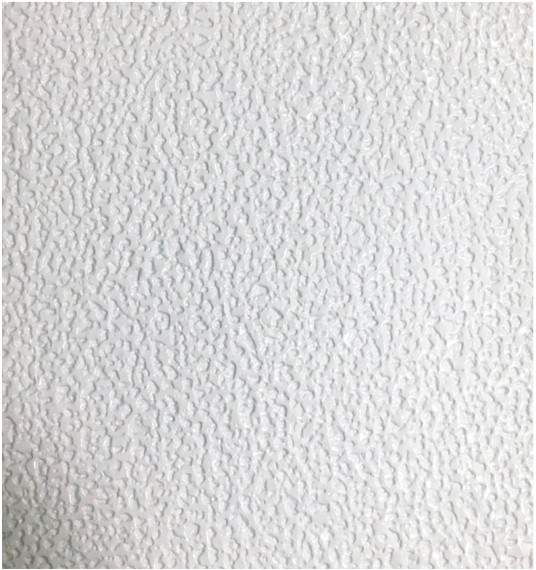

D1

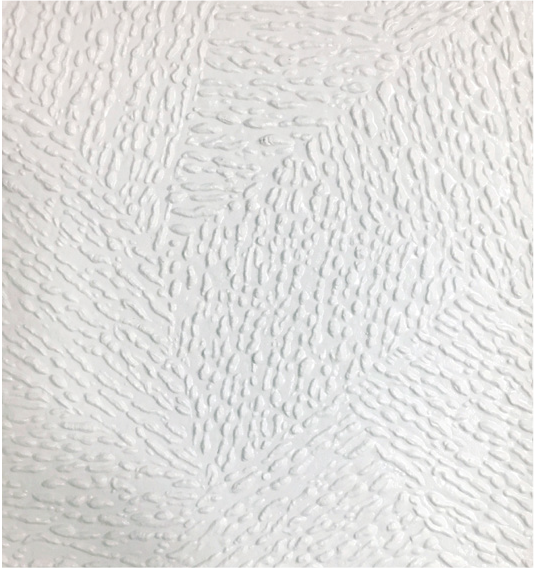

D2

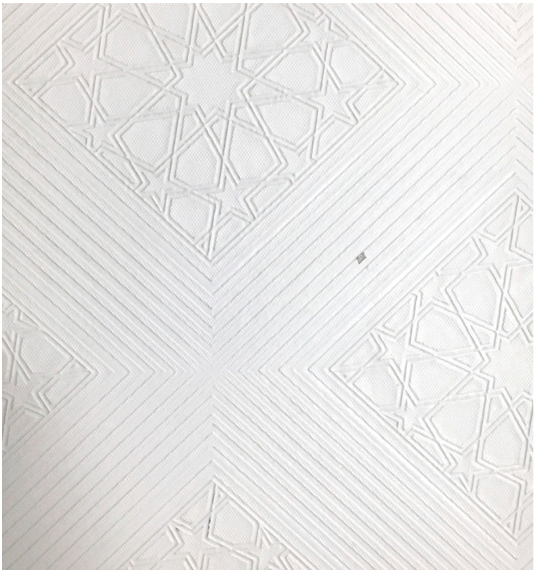

D5

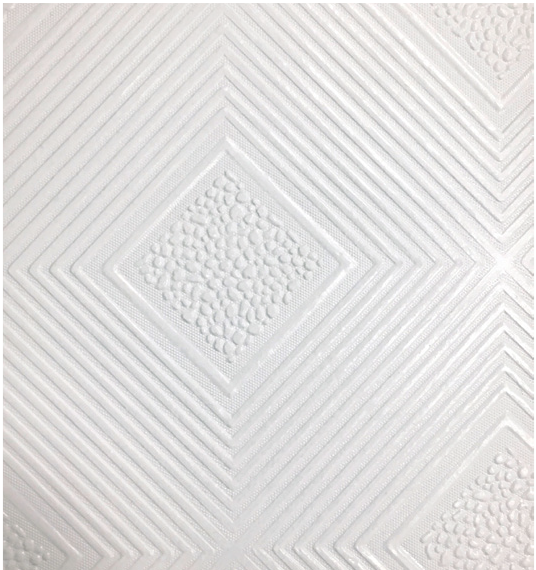

D7

D11

D14

D17

D19

D21

D22
